PATROL VESSELS

PROJECT: 84 m Patrol Vessel

Conceptual design and naval architecture calculations

  • LOA: 84.00 m
  • LPP: 72.00 m
  • B: 14.00 m
  • D: 7.00 m
  • T: 4.00 m
84m Oceanicc Patrol Vessel
  • Max. Speed: >19 knots
  • Accommodation: 75 p
  • Propulsion: 2 x 2560 kW
  • Hull: Mild Steel Grade A

PROJECT: 47 m Patrol Vessel

  • LOA: 47.00 m
  • LPP: 47.15 m
  • B: 8.50 m
  • D: 4.50 m
  • T: 2.00 m
  • Max. Speed: >30 knots
  • Lightship Weight: 260 t
  • Accommodation: 22 p
  • Propulsion: 3 x 2340 kW
  • Hull: Mild Steel Grade A
47 m Patrol Vessel-2
47 m Patrol Vessel

PROJECT: 51 m Patrol Vessel

  • LOA: 51.50 m
  • LPP: 49.00 m
  • B: 8.50 m
  • D: 4.50 m
  • T: 2.15 m
47 m Patrol Vessel-2
51 m Patrol Vessel

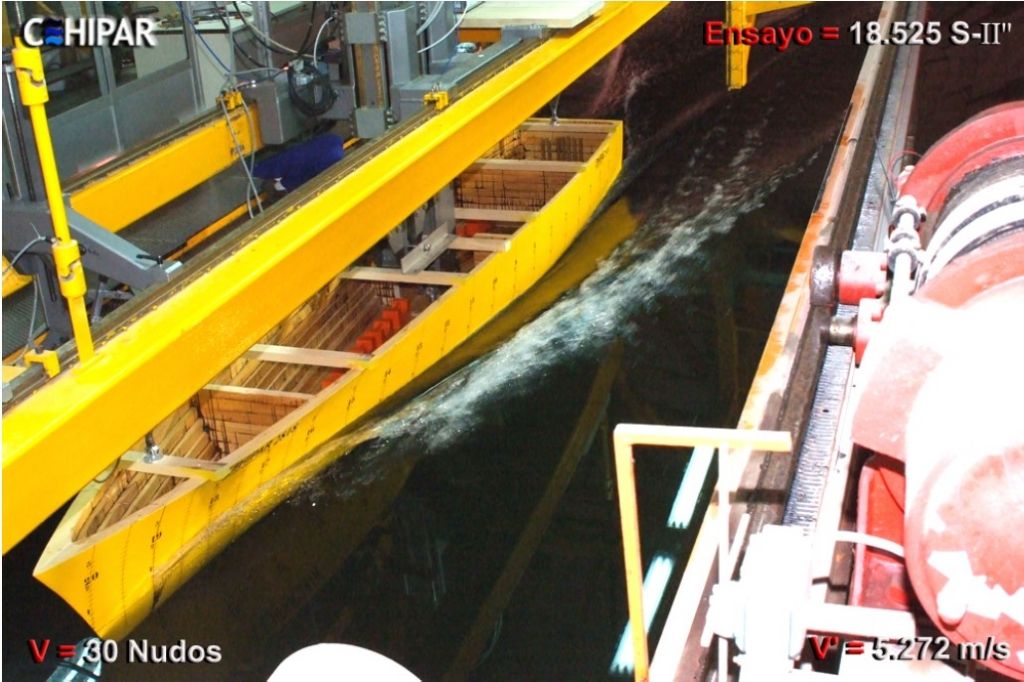

47 m Patrol Vessel-3
  • Max. Speed: >30 knots
  • Lightship Weight: 260 t
  • Accommodation: 24 p
  • Propulsion: 3 x 2340 kW
  • Hull: Mild Steel Grade A
47 m Patrol Vessel-4

PROJECT: 33 m Patrol Vessel

  • LOA: 33.00 m
  • LPP: 30.50 m
  • B: 6.90 m
  • D: 3.60 m
  • T: 1.60 m
33 m Patrol Vessel
  • Max. Speed: >30 knots
  • Lightship Weight: 150 t
  • DO: 18.00 m³
  • FW: 6.00 m³
  • Accommodation: 13 p
  • Propulsion: 2 x 2340 kW
  • Hull: Mild Steel Grade A

PROJECT: 65 m Patrol Vessel for Mauritania

  • LOA: 65.00 m
  • B: 10.00 m
  • T: 2.30 m
  • Max. Speed: >19 knots
  • Accommodation: 75 p
  • Propulsion: 2 x 2560 kW
  • Hull: Mild Steel Grade A
65 m Patro Vessel for Mauritania
65 m Patro Vessel for Mauritania-1

PROJECT: Fast Crew Boat

  • LOA: 52.20 m
  • LPP: 49.00 m
  • B: 8.50 m
  • T: 2.40 m
Fast Crew Boat
  • Max. Speed: >18.50 knots
  • Personnel: 50 p
  • Accommodation: 16 p
  • Propulsion: 3 x 2340 kW
  • Hull: Mild Steel Grade A

PROJECT: 30 m SVA Patrol Vessel

  • LOA: 30.00 m
  • B: 5.85 m
  • T: 1.05 m
  • Max. Speed: >30 knots
  • Propulsion: Water jets
  • Hull: Mild Steel Grade A
30 m SVA Patrol Vessel

PROJECT: 25 m Patrol Vessels

  • LOA: 25.00 m
  • B: 6.00 m
  • T: 1.50 m
Patrol Vessel for Nicaragua-1
Patrol-Vessel-for-Nicaragua-3a
Patrol-Vessel-for-Nicaragua-3b
  • LOA: 29.00 m
  • B: 6.00 m
  • T: 1.50 m
Patrol Vessel for Nicaragua-2

PROJECT: Patrol Vessel Angola

  • LOA: 19.50 m
  • B: 5.50 m
  • T: 1.00 m
Patrol Vessel for Angola
  • Max. Speed: 30 knots
  • Propulsion: 2 x 1000 kW

PROJECT: Rescue & Anti-Polution Vessel

  • LOA: 76.20 m
  • LPP: 72.005 m
  • B: 16.40 m
  • T: 5.10 m
Rescue & Anti-Polution Vessel
  • Max. Speed: 15 knots
  • Crew: 15 p
  • Special Personnel: 35 p
  • Propulsion: 4 x 2500 kW
